Alumina thermocouple insulators and multi-bore tubes

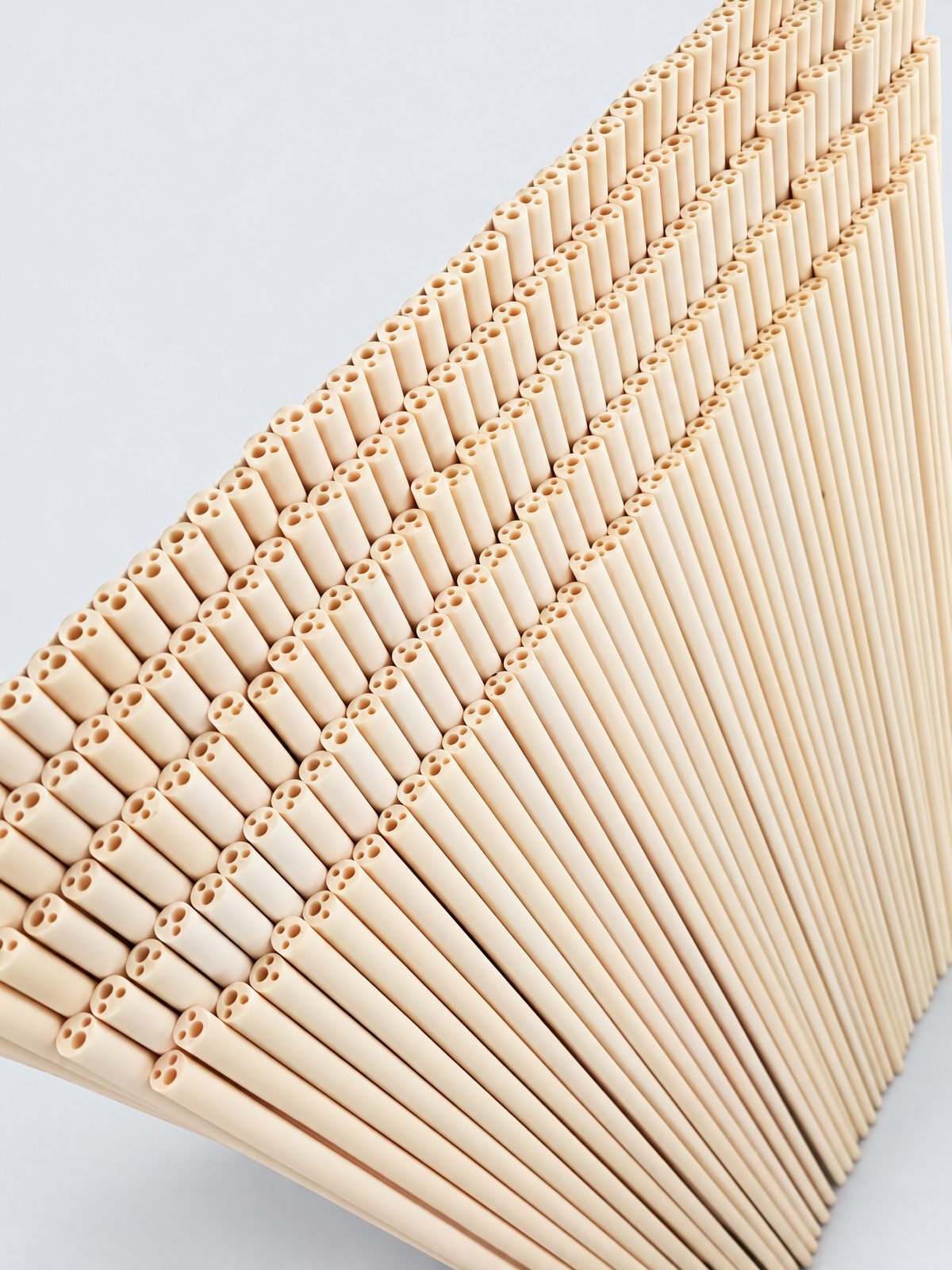

Ceramic thermocouple insulators with one, two or four bores, in C799 alumina, OD 2–12 mm and cut to length. 15 sizes are usually in stock, including twin- and four-bore insulators from OD 2.5 to 8.5 mm with bores of 0.6 to 1.8 mm. Small orders ship in about 3 days.
- outer diameter
- 2–12 mm
- outer diameter
- bores
- 1, 2 or 4
- bores
- usually in stock
- 15 sizes
- usually in stock
- to ship
- ~3 days
- to ship

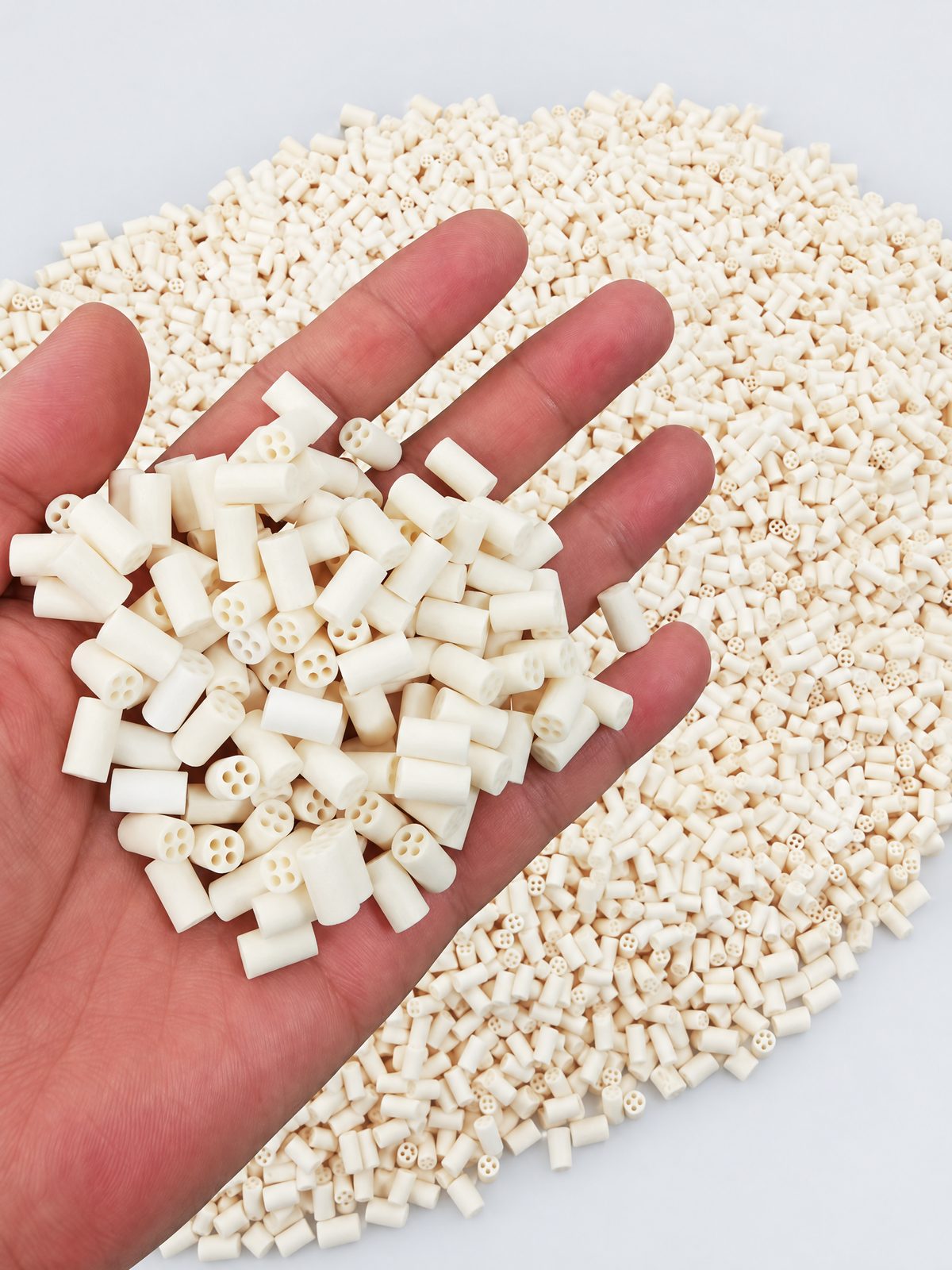

Insulators from our factory
See all 9 photos
Configurations
- Single bore
- Double bore
- Multi-bore
- Round
- Elliptical
- Capillary
Applications
- Thermocouple wire separation
- High-temperature electrical insulation
- High-frequency electrical insulation
Ordering
- Minimum order, non-standard parts
- 100 pcs
- Usually, per item made to your drawing or sample.
- Samples for approval
- 5–10 pcs
- Usually sent for you to approve before the order runs.
- Production lead time
- 25–30 days
- Usual production cycle for non-standard parts.
- Standard sizes from stock
- ~3–7 days
- Stock covers most standard sizes. Small orders ship in about 3 days, bulk orders in about 7 days.
Typical terms. Quantities and dates for your order are confirmed in its quotation.
Standard sizes
Size range
- OD
- 2–12 mm
- Length
- 10–4000 mm
Other sizes made to drawing; tolerances confirmed per quotation.
Usually in stock
Dimensions in mm
| OD | 1 boreBore Ø | 2 boresBore Ø | 4 boresBore Ø |
|---|---|---|---|
| 2.5 | 2.5 × 1.5 mm, 1 bore | 2.5 × 0.7 mm, 2 bores | 2.5 × 0.6 mm, 4 bores |
| 3 | 3 × 2 mm, 1 bore | — | — |
| 3.5 | — | 3.5 × 0.9 mm, 2 bores | 3.5 × 0.8 mm, 4 bores |
| 4.2 | — | 4.2 × 1.1 mm, 2 bores | 4.2 × 1.0 mm, 4 bores |
| 4.5 | — | 4.5 × 1.2 mm, 2 bores | 4.5 × 1.1 mm, 4 bores |
| 5.5 | — | 5.5 × 1.4 mm, 2 bores | 5.5 × 1.3 mm, 4 bores |
| 8.5 | — | 8.5 × 1.8 mm, 2 bores | 8.5 × 1.6 mm, 4 bores |
| 10 | 10 × 4 mm, 1 bore | — | — |
Standard sizes usually ship from stock in 3–7 days. Lengths are cut to order.
Bore Ø is the diameter of each bore. A dash means that layout is not listed for the OD. From our factory's standard-size list, September 2026.
Also made to order
Sizes from our earlier standard list. We make them to order; the lead time is confirmed in the quotation.
| OD | 1 boreBore Ø | 2 boresBore Ø | 4 boresBore Ø |
|---|---|---|---|
| 2 | 2 × 1 mm, 1 bore | 2 × 0.5 mm, 2 bores | 2 × 0.4 mm, 4 bores |
| 3 | — | 3 × 0.8 mm, 2 bores | 3 × 0.6 mm, 4 bores |
| 4 | 4 × 2.5 mm, 1 bore | 4 × 1 mm, 2 bores | 4 × 1 mm, 4 bores |
| 5 | 5 × 3 mm, 1 bore | 5 × 1.2 mm, 2 bores | 5 × 1.2 mm, 4 bores |
| 6 | 6 × 4 mm, 1 bore | 6 × 1.4 mm, 2 bores | 6 × 1.3 mm, 4 bores |
| 8 | 8 × 5 mm, 1 bore | 8 × 1.8 mm, 2 bores | 8 × 1.6 mm, 4 bores |
| 12 | 12 × 7 mm, 1 bore | — | — |
Flat twin-bore insulators
Flat, oval twin-bore insulators (flat cores) for photovoltaic and semiconductor use.
2.3 × 1.4 mm (width × thickness) usually in stock. 3 × 2, 3 × 1.8, 4 × 3 and 4.1 × 2.8 mm made to order, in lengths up to 4,000 mm.

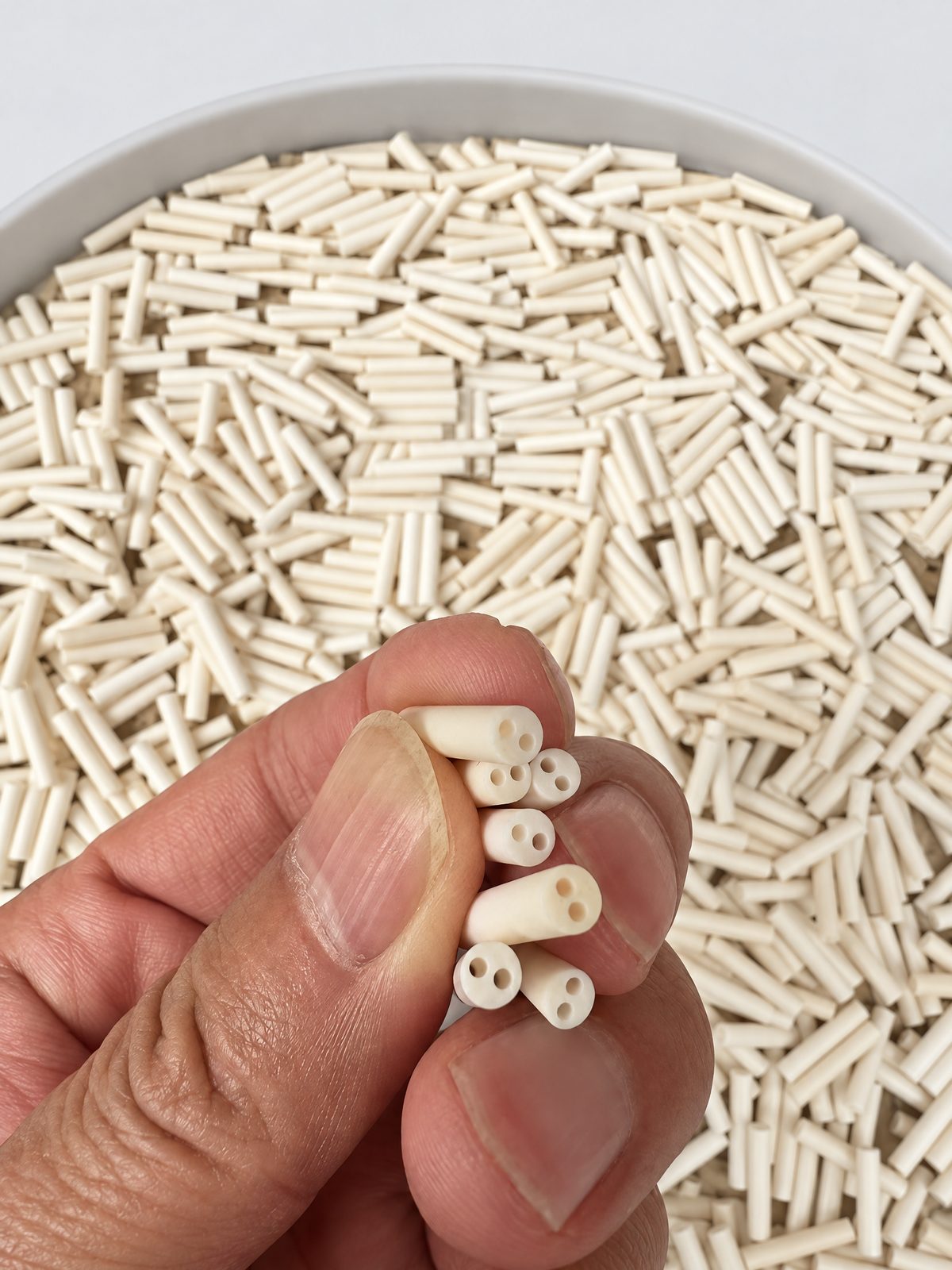

Bore patterns we have made
- 1 bore
- 2 bores
- 3 bores
- 4 bores
- 4 bores, 2 + 2
- 5 bores
- 6 bores
- 7 bores
- 1 large + 2 small
End-face sketches, not to scale. Layouts from one to seven bores, including a large bore with two small ones. Smaller sizes have also been made: the smallest marked twin-bore insulator is about Ø1.5 mm OD.
Grade and material data
Alumina. Our standard grade is C799 alumina, 99.5% Al₂O₃, and we supply 95% white alumina where a drawing names C 610. The grade and bore layout are confirmed per SKU at quotation.
Full material data| Material class | Al₂O₃ % | Working temperature °C | Hardness, Mohs |
|---|---|---|---|
| High-alumina | >85 | 1300–1450 | 8 |
| Corundum | 99–99.5* | 1600–1800* | 8-9 |
* Stated per SKU: the grade and maximum temperature of each part are confirmed in its quotation.
